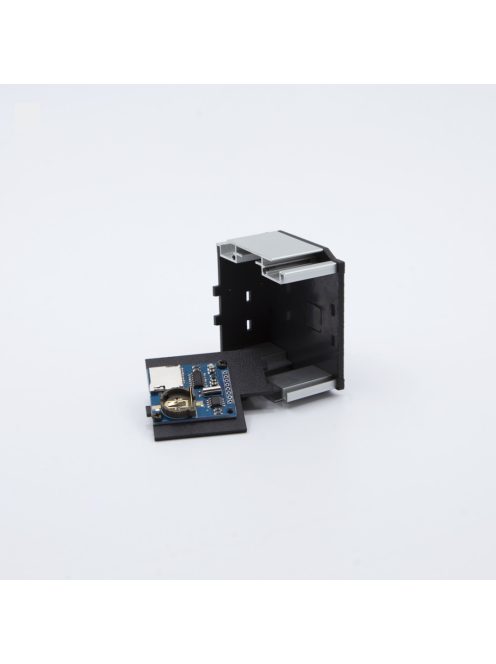

It is recommended to operate the AX SD+RTC Module via the AX Controll Module, which is suitable for Arduino Nano and ESP32 development platforms. The modules can be easily connected to each other through pre-formed openings on the sides of the boxes with a row of pins.
Preboxi AX box, a family of boxes developed for mounting electronic Arduino panels, rapid prototyping, and education.
/1 depth, 64 mm/
/3 width, 68, 90, 140 mm/
/7 length, 33, 70, 107, 143, 216, 289, 435 mm/
Available in a total of 21 sizes.
As a result, 21 different sizes are available for packaging the developments.

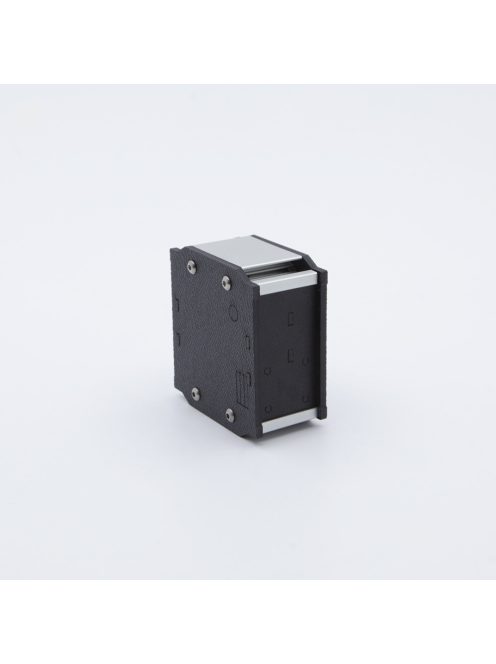

The stability of the box is provided by a quality anodized aluminum profile, which is connected to the front and side panels made of industrial plastic with a black micro-ribbed surface.
An empty project box with pre-designed mounting locations for Arduino boards.
The mounting openings and holes are made in a snap-on design to facilitate easy and user-friendly installation.
With Preboxi boxes, stable packaging of small-series unique Arduino electronic developments can be realized, even in industrial-level quality, at an affordable price.

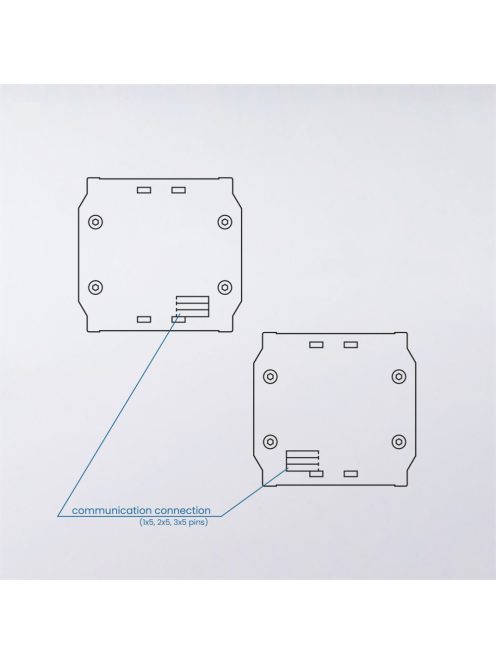

The special feature of the hobby box is that with the help of a 3×5 pin connector that can be installed in the space provided for the communication outlet on two sides, the possibility of power supply transfer and data communication can also be established with neighboring boxes.
Prebox boxes of the same type can contact each other through these communication options, and thus a more complex system can be built by placing several boxes next to each other.

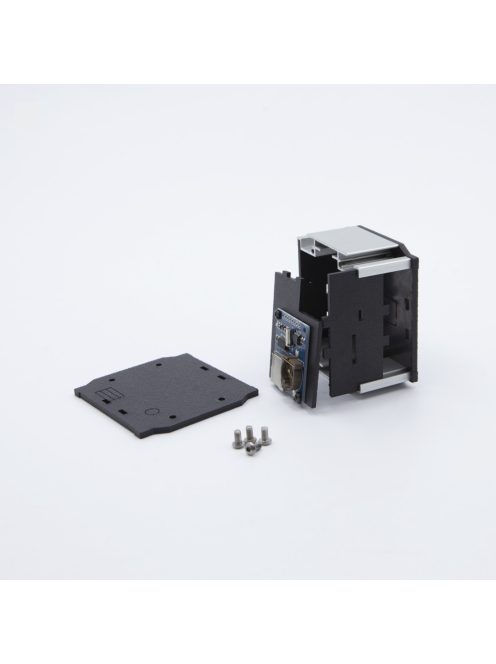

The package includes everything you need for installation.
Screws A2 or galvanized, if necessary, spacers and washers.
The part to be installed of the type indicated above can be installed in the box without mechanical carving with 99.9% certainty.
If there are installation difficulties of a few tenths of a millimeter due to the production variance of the panel manufacturer, it can easily be corrected with a file or a drill.
Prebox boxes make up a system, they can be found in the offer similarly boxed, Arduino compatible joystick, double joystick, LCD IIC 2×16, OLED 1.3″ 128*64, IIC, SD card receiver, ADKey 5-button push button, Arduino nano, ESP32 motherboard receiver box with antenna output.
The offer also includes an empty, unprocessed box in several sizes, into which the user can build his own equipment.
The blank unprocessed box also contains the locations of the two-sided communication 3×5 pin design.
The boxes can be placed next to each other and secured by a separately ordered frame that can be fixed with screws that can be slid into the groove. An unlimited number of instrument boxes can be connected to each other with the fixing elements.
The completed prototype can be easily transported, visually presented, and quickly modified using the Prebox box.
By using Preboxi AX, you can give an impressive presentation to your customers and prospective customers.
By purchasing the product, you will make your work easier for decades, and you won't believe how you have been able to live without it until now.
